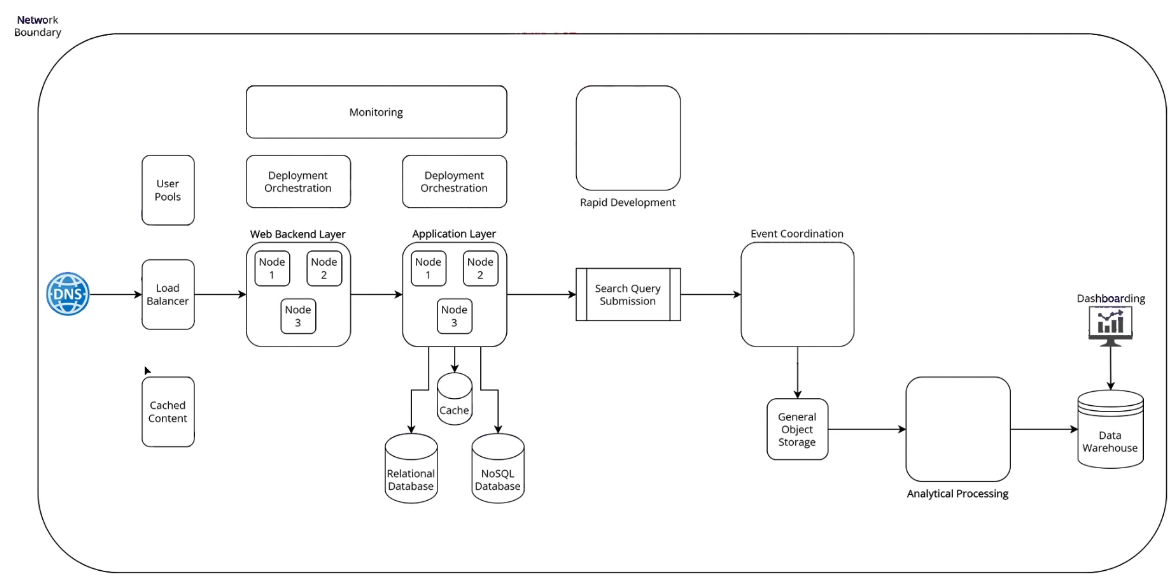

8 AWS Architecture Design

DNS - Route53

• where the traffic come from the internet
• health check

Load Balencer

• ELB = Elastic load balencer

has 2 veriation

• ALB = application load balencer ( L7 level)
• NLB = network load balencer ( L4 level)

Web Backend Layer

3 choice for Web Backend layer

EC2

• you can run vertual machine

Lambda

• serverless

• no need to worry about infra

• pay per invocation

ECS

• middle between EC2 and lambda

Api Gateway

• Api Gateway

• Help to host apis

• Feature - Api throttling

• authorization on an api

Better than ELB

Elastic Cache

• 2 flaver

• Memcached based or Redis

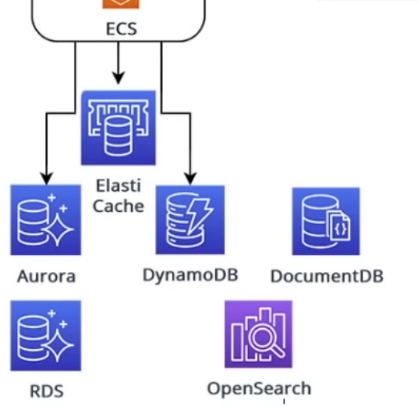

Database Services

Aurora

RDS DB

DynamoDB

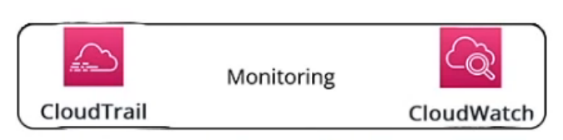

Monitoring Services

Cloud watch

• it has many services
• view diff matrics on ec2 machine what is cpu or memery uutilization
• lambda How many invokation it has
• logging

Cloud Trail

• Cloud watch help to monitor sate of app

Where as Cloud Trail help to monitor infra

• who is deleting
• who is accessing what services and what are they doing to the services

Security - IAM

Security management service

We create User or Role

User has policy by default user don’t have permission to do anything with aws unless you attach IAM policy to that user

Event Co-ordination

Event Co-ordination

Notification service

SNS = is pub sub service it publish notification to topic then many application (lambda) subscribe it

SQS queue = hold message

EventBridge = similar to SNS + more

Action - Whenever ES2 terminated

• Whenever Lambda fun get updated

• Whenever conf in dynamodb change

Step Fun = help to define work flow
